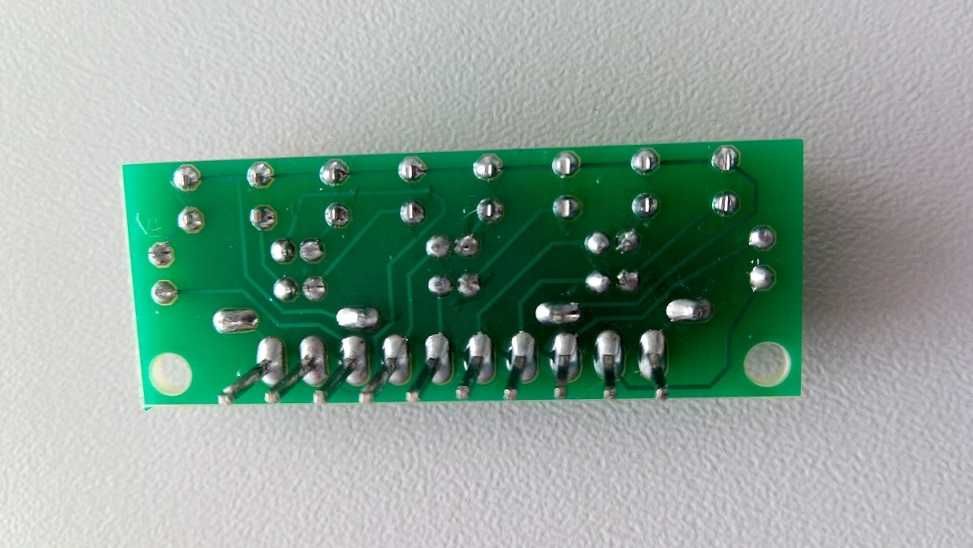

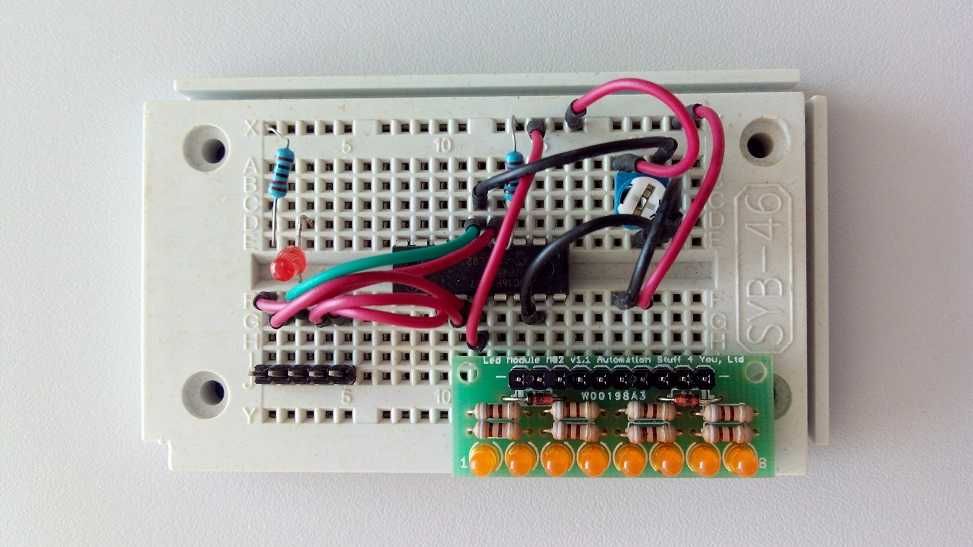

8 Orange LEDs Board, Works with Arduino, AVR, PIC

Main Features: Only 40 mm x 15 mm, 8 LEDs Reverse polarity protection Operates from 3.3 volts up to 12 volts Ideal for connection with Arduino (Atmel® AVR microcontrollers, Arduino "mini", "Nano", "Extreme", "mega", "Mega2560", "Duemilanove" etc), PIC (Microchip PIC® microcontrollers (MCUs), 8-bit, 16-bit and 32-bit microcontroller families), ARM processors such as Raspberry Pi, BeagleBoard, etc, and can even connect directly to headers with a single ground wire correctly aligned for common cathode connection. Product Specifications: Output Board Ideal for testing outputs and using as status indication. 8 LEDs (3mm), with current-limiting resistors, red LED ready to operate with +5V input. Can be directly connected to the output port of control boards, test boards, etc. This module is intended for educational, experimental and production purposes with 8 LEDs Supply voltage: 3.3-12V Peak LED output current (maximum): 20 mA per LED Total peak output current (maximum): 160mA for 8 LEDs Connects directly to other controller boards Easily test outputs with LED status indicator for each pin Separate power supply not required Easily adaptable for use with other boards 1x10 2.54 millimeter standard Pin Socket Reverse polarity protection (two diodes) Operating Temperature: -40 to 85 °C Output 8 LEDs: Interface Hole pitch: Approx. 40 millimeters and 35 millimeters Internal hole diameter: Approx. 2.5 millimeters Board size (L x W): 40 x 15mm (FR4 Laminate 1 ounce copper) Weight: 4g Includes: 1 Board with 8 LEDs. Available colors: Orange. In operation: youtube.com/shorts/TMG-J9QcNzs?si=L6RKQjbMZcIxvI7x Hand delivery available in Santo Tirso or Vila das Aves area.
